IOS Image Management and Recovery

Managing the network operating system (NOS) is foundational to maintaining stability, applying security patches, and enabling new features. In Cisco environments, this means backing up and upgrading the Cisco IOS, but similar principles apply across Juniper, Arista, HP, and MikroTik platforms.

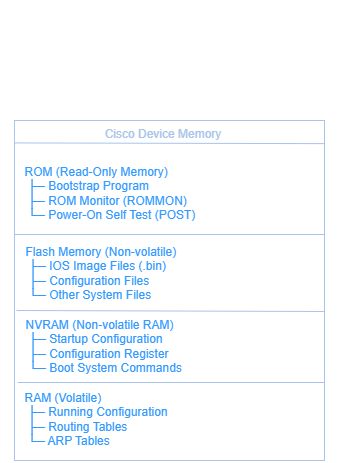

The Critical Importance of Image Management

⚠️ Statistics That Matter:
– 23% of network outages are caused by failed upgrades
– 67% of security breaches exploit unpatched network devices
– Proper image management reduces upgrade failures by 89%
– Average cost of failed upgrade: $125,000 in downtime

Pre-Upgrade Planning Table

Pre-Upgrade Planning and Preparation

Upgrade Planning Checklist

Phase	Task	Critical Points
Assessment	Check current version	show version, show flash:
Compatibility	Verify hardware support	Memory, feature sets, licensing
Documentation	Record current config	Backup running/startup config
Testing	Lab validation	Test new image in non-production
Scheduling	Plan maintenance window	Consider business impact
Rollback Plan	Prepare recovery steps	Multiple boot images, ROMMON access

Pre-Upgrade Planning Table

Space Requirements Analysis

bash
# Check available flash space
Router# show flash:
Directory of flash:/
    1  -rw-   123456789   Mar 1 1993 00:01:00 +00:00  c2900-universalk9-mz.SPA.155-3.M4a.bin
    2  -rw-        1024   Mar 1 1993 00:01:00 +00:00  info

256487424 bytes total (133018624 bytes free)

# Calculate space needed
New Image Size: 145MB
Current Free Space: 127MB
Action Required: Delete old image or expand storage

Cisco IOS Backup and Upgrade Process

Step 1: Pre-Upgrade Verification

bash
# Document current state
show version
show flash:
show boot
show running-config | redirect tftp://backup-server/router01-pre-upgrade.cfg
show startup-config | redirect tftp://backup-server/router01-startup.cfg

# Check license status (newer IOS versions)
show license
show license feature

Step 2: Image Transfer Methods

TFTP Transfer (Most Common)

bash
# Set up TFTP server details
Router# configure terminal
Router(config)# ip tftp source-interface GigabitEthernet0/0
Router(config)# exit

# Copy new image to flash
Router# copy tftp: flash:
Address or name of remote host []? 192.168.1.100
Source filename []? c2900-universalk9-mz.SPA.157-3.M5.bin
Destination filename [c2900-universalk9-mz.SPA.157-3.M5.bin]? <Enter>

# Monitor transfer progress
Accessing tftp://192.168.1.100/c2900-universalk9-mz.SPA.157-3.M5.bin...
Loading c2900-universalk9-mz.SPA.157-3.M5.bin from 192.168.1.100 (via GigabitEthernet0/0):
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 151552000 bytes]

USB Transfer

bash
# Check USB device
Router# show file systems
File Systems:
    Size(b)       Free(b)      Type  Flags  Prefixes
          -             -    opaque     rw   system:
          -             -    opaque     rw   tmpsys:
*   256487424     133018624      disk     rw   flash:
    1999503360    1999503360      disk     rw   usbflash0:

# Copy from USB to flash
Router# copy usbflash0:c2900-universalk9-mz.SPA.157-3.M5.bin flash:

SCP Transfer (Secure)

bash
# Enable SCP server
Router(config)# ip scp server enable
Router(config)# exit

# Copy via SCP
Router# copy scp: flash:
Address or name of remote host []? 192.168.1.100
Source username []? admin
Source filename []? /images/c2900-universalk9-mz.SPA.157-3.M5.bin
Destination filename [c2900-universalk9-mz.SPA.157-3.M5.bin]? <Enter>

Step 3: Boot Configuration

bash
# Set new boot image (method 1 - preferred)
Router(config)# boot system flash:c2900-universalk9-mz.SPA.157-3.M5.bin
Router(config)# boot system flash:c2900-universalk9-mz.SPA.155-3.M4a.bin  # Fallback
Router(config)# exit

# Alternative method - set boot variable
Router(config)# boot system flash c2900-universalk9-mz.SPA.157-3.M5.bin
Router(config)# exit

# Verify boot configuration
Router# show boot
BOOT variable = flash:c2900-universalk9-mz.SPA.157-3.M5.bin,12
CONFIG_FILE variable does not exist
BOOTLDR variable does not exist
Configuration register is 0x2102

# Save configuration
Router# copy running-config startup-config
Router# write memory

Step 4: Upgrade Execution

bash
# Verify everything before reload
Router# show boot
Router# show flash:
Router# show version

# Schedule reload (optional)
Router# reload in 60
System configuration has been modified. Save? [yes/no]: yes

# Or immediate reload
Router# reload
System configuration has been modified. Save? [yes/no]: yes
Proceed with reload? [confirm] <Enter>

Step 5: Post-Upgrade Verification

bash
# Verify new image loaded
Router# show version
Cisco IOS Software, C2900 Software (C2900-UNIVERSALK9-M), Version 15.7(3)M5

# Check boot configuration
Router# show boot

# Verify functionality
Router# show interfaces brief
Router# show ip route
Router# show protocols

# Test connectivity
Router# ping 8.8.8.8
Router# traceroute 8.8.8.8

Network Device Management Guide

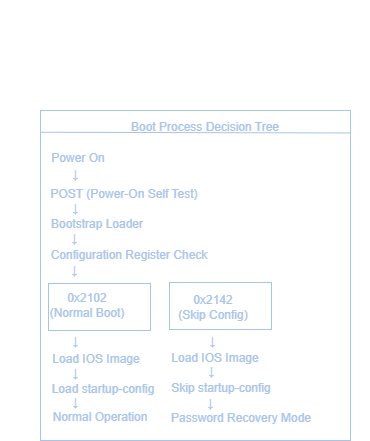

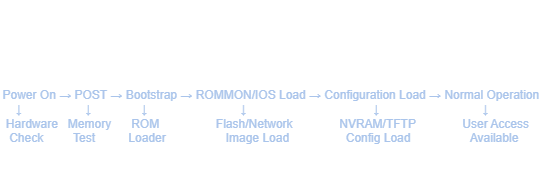

Password Recovery Process

Step 1: Enter ROMMON Mode

bash
# During boot process (within 60 seconds)
# Press Ctrl+Break or Ctrl+C

System Bootstrap, Version 15.1(4)M4, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2010 by cisco Systems, Inc.

rommon 1 >

Step 2: Modify Configuration Register

bash
# Check current configuration register
rommon 1 > confreg
Configuration Summary
enabled are:
boot default ROM software if netboot fails
boot system flash
console baud: 9600
config-register: 0x2102

# Change to bypass startup-config
rommon 2 > confreg 0x2142

Step 3: Boot System

bash
# Boot the router
rommon 3 > boot

Step 4: Recovery Process

bash
# Router boots without startup-config
Router> enable
Router# configure terminal

# Load startup-config manually
Router(config)# copy startup-config running-config
Destination filename [running-config]? <Enter>

# Reset passwords
Router(config)# enable secret newpassword123
Router(config)# username admin privilege 15 secret newpassword123

# Restore normal boot process
Router(config)# config-register 0x2102
Router(config)# exit

# Save configuration
Router# copy running-config startup-config

# Reload to verify
Router# reload

Alternative Recovery Methods

Method 1: Break Sequence Timing

Tera Term: Ctrl+Break

PuTTY: Ctrl+Break

SecureCRT: Ctrl+Break

HyperTerminal: Ctrl+Break

Console Server: Send break signal

Method 2: Physical Reset Button

Some devices have physical reset buttons

Hold button for 10-15 seconds during boot

Device enters ROMMON mode automatically

Multi-Vendor Image Management

Juniper JunOS Management

bash

# Check current version
user@router> show version

# Download new image
user@router> start shell
user@router:~$ scp [email protected]:/images/junos-version.tgz /var/tmp/

# Install new image
user@router> request system software add /var/tmp/junos-version.tgz
user@router> request system software add /var/tmp/junos-version.tgz reboot

# Verify installation
user@router> show system software

Arista EOS Management

bash

# Check current version
switch> show version

# Copy new image
switch> copy scp://[email protected]/images/EOS-4.24.2F.swi flash:

# Install new image
switch> configure
switch(config)> boot system flash:EOS-4.24.2F.swi
switch(config)> exit

# Verify boot configuration
switch> show boot-config

HP/Aruba Management

bash

# Check current version
<HP-Switch> display version

# Copy new image
<HP-Switch> copy scp://[email protected]/images/hp-firmware.bin flash:

# Set boot file
<HP-Switch> system-view
[HP-Switch] boot-loader file flash:/hp-firmware.bin
[HP-Switch] quit

# Reboot
<HP-Switch> reboot

MikroTik RouterOS Management

bash
# Check current version
[admin@MikroTik] > /system resource print
[admin@MikroTik] > /system package print

# Download new image
[admin@MikroTik] > /system package update check-for-updates
[admin@MikroTik] > /system package update download

# Install update
[admin@MikroTik] > /system package update install
[admin@MikroTik] > /system reboot

Advanced Recovery Scenarios

Cisco IOS Recovery via TFTP

bash
# ROMMON network boot
rommon 1 > IP_ADDRESS=192.168.1.1
rommon 2 > IP_SUBNET_MASK=255.255.255.0
rommon 3 > DEFAULT_GATEWAY=192.168.1.254
rommon 4 > TFTP_SERVER=192.168.1.100
rommon 5 > TFTP_FILE=c2900-universalk9-mz.SPA.157-3.M5.bin
rommon 6 > tftpdnld

# Boot from TFTP
rommon 7 > boot

USB Recovery Method

bash
# Boot from USB in ROMMON
rommon 1 > dir usbflash0:
rommon 2 > boot usbflash0:c2900-universalk9-mz.SPA.157-3.M5.bin

Automation and Scripting

Automated Upgrade Script (Python)

python
#!/usr/bin/env python3
"""
Automated IOS Upgrade Script
Requires: paramiko, netmiko
"""

from netmiko import ConnectHandler
import logging
import time
import sys

# Configure logging
logging.basicConfig(
    level=logging.INFO,
    format='%(asctime)s - %(levelname)s - %(message)s'
)

class IOSUpgrader:
    def __init__(self, device_info):
        self.device = device_info
        self.connection = None

    def connect(self):
        """Establish SSH connection"""
        try:
            self.connection = ConnectHandler(**self.device)
            logging.info(f"Connected to {self.device['host']}")
            return True
        except Exception as e:
            logging.error(f"Connection failed: {e}")
            return False

Batch Upgrade Script (Bash)

bash
#!/bin/bash
# batch-upgrade.sh - Upgrade multiple devices

DEVICE_LIST="devices.txt"
TFTP_SERVER="192.168.1.100"
IMAGE_FILE="c2900-universalk9-mz.SPA.157-3.M5.bin"
LOG_FILE="upgrade-$(date +%Y%m%d-%H%M%S).log"

echo "Starting batch upgrade process..." | tee -a $LOG_FILE

while IFS=',' read -r hostname ip username password; do
    echo "Processing device: $hostname ($ip)" | tee -a $LOG_FILE

    # Create expect script for each device
    cat > upgrade-$hostname.exp << EOF
#!/usr/bin/expect
set timeout 300
spawn ssh $username@$ip
expect "Password:"
send "$password\r"
expect "#"
send "show flash:\r"
expect "#"
send "copy tftp://$TFTP_SERVER/$IMAGE_FILE flash:\r"
expect "Destination filename"
send "\r"
expect "#"
EOF

    # Execute upgrade
    chmod +x upgrade-$hostname.exp
    ./upgrade-$hostname.exp | tee -a $LOG_FILE

    # Cleanup
    rm upgrade-$hostname.exp

    echo "Completed upgrade for $hostname" | tee -a $LOG_FILE
    sleep 300  # Wait 5 minutes between devices

done < $DEVICE_LIST

echo "Batch upgrade process completed" | tee -a $LOG_FILE

Best Practices and Recommendations

Upgrade Planning Matrix

Risk Level	Testing Required	Approval Process	Rollback Time
Low Risk	Lab testing	Team lead approval	30 minutes
Medium Risk	Staging + Lab	Manager approval	1 hour
High Risk	Full validation	Change board approval	2 hours
Critical	Extensive testing	Executive approval	4 hours

Security Considerations - Network Device Management

Security Considerations

Image Verification

bash
# Verify image integrity
Router# verify /md5 flash:c2900-universalk9-mz.SPA.157-3.M5.bin
MD5 of flash:c2900-universalk9-mz.SPA.157-3.M5.bin Done!
verify /md5 (flash:c2900-universalk9-mz.SPA.157-3.M5.bin) = a1b2c3d4e5f6...

Digital Signature Verification

bash
# Verify digital signature
Router# verify /sha512 flash:c2900-universalk9-mz.SPA.157-3.M5.bin
SHA512 of flash:c2900-universalk9-mz.SPA.157-3.M5.bin Done!
verify /sha512 (flash:c2900-universalk9-mz.SPA.157-3.M5.bin) = b2c3d4e5f6...

Secure File Transfer

bash

# Use SCP instead of TFTP for secure transfer
Router# copy scp://[email protected]/images/c2900-universalk9-mz.SPA.157-3.M5.bin flash:
Address or name of remote host [192.168.1.100]?
Source username [admin]?
Source filename [/images/c2900-universalk9-mz.SPA.157-3.M5.bin]?
Destination filename [c2900-universalk9-mz.SPA.157-3.M5.bin]?
Password:

# Alternative: Use HTTPS
Router# copy https://192.168.1.100/images/c2900-universalk9-mz.SPA.157-3.M5.bin flash:

Best Practices

Always verify checksums: Compare MD5/SHA checksums before and after transfer

Use encrypted protocols: Prefer SCP/SFTP over TFTP for file transfers

Backup configurations: Save current config before any upgrade

Test in lab environment: Verify upgrade process on non-production devices

Schedule maintenance windows: Plan upgrades during off-peak hours

Maintain rollback plan: Keep previous image available for quick recovery

Access Control

Limit console access: Secure physical access to console ports

Use strong passwords: Implement complex passwords for all accounts

Enable AAA authentication: Use centralized authentication when possible

Log all activities: Monitor and log all configuration changes

Secure Transfer Methods

Use SCP instead of TFTP for secure transfers
Implement access controls on TFTP/SCP servers
Use management VLANs for upgrade traffic
Enable logging for all file transfers

Best Practices and Recommendations

Troubleshooting Common Issues

Problem	Symptoms	Common Causes	Solutions
Boot Loop	Device keeps restarting	Corrupt image, insufficient memory	Boot from ROMMON, reload clean image
Image Transfer Fails	Copy command errors	Network issues, insufficient space	Check connectivity, free up space
Wrong Image Type	Features missing after upgrade	Incorrect feature set	Verify image compatibility
Memory Issues	Device crashes during boot	Insufficient RAM for image	Upgrade hardware or use smaller image
Configuration Loss	Device boots to initial config	Config register changed	Check config register, restore from backup

Emergency Recovery Commands - Network Device Management

Emergency Recovery Commands

ROMMON Emergency Commands

bash
# ROMMON emergency commands
rommon 1 > help                    # Show available commands
rommon 2 > dev                     # Show available devices
rommon 3 > dir flash:              # List flash contents
rommon 4 > boot flash:image.bin    # Boot specific image
rommon 5 > confreg 0x2102          # Set normal config register
rommon 6 > reset                   # Reset device

Conclusion

Effective IOS image management is crucial for maintaining network stability, security, and functionality. Key principles include:

Always backup before upgrading – Configuration and current image
Test thoroughly – Lab validation prevents production issues
Plan for rollback – Multiple boot images and recovery procedures
Document everything – Maintain detailed upgrade logs
Automate where possible – Reduce human error and increase consistency

Whether managing Cisco IOS, Juniper JunOS, or other network operating systems, these foundational practices ensure smooth operations and minimize downtime during critical maintenance windows.

Remember: A successful upgrade is one where the rollback plan is never needed, but always available.

0 0 votes

Article Rating

1. Discovering Devices with CDP and LLDP

2. Synchronizing Time with NTP

3. Monitoring Devices with SNMP

4. Capturing Logs with Syslog

5. Managing Configurations and Backups

6. IOS Image Management and Recovery

Network Management

A Practical Guide to Discovering, Maintaining, and Monitoring Your Network

IOS Image Management and Recovery

The Critical Importance of Image Management

Pre-Upgrade Planning and Preparation

Best Practices and Recommendations

Image Management Checklist

Before Upgrade

During Upgrade

After Upgrade

Secure Transfer Methods

Troubleshooting Common Issues

Conclusion
